Passive Powerhouse.

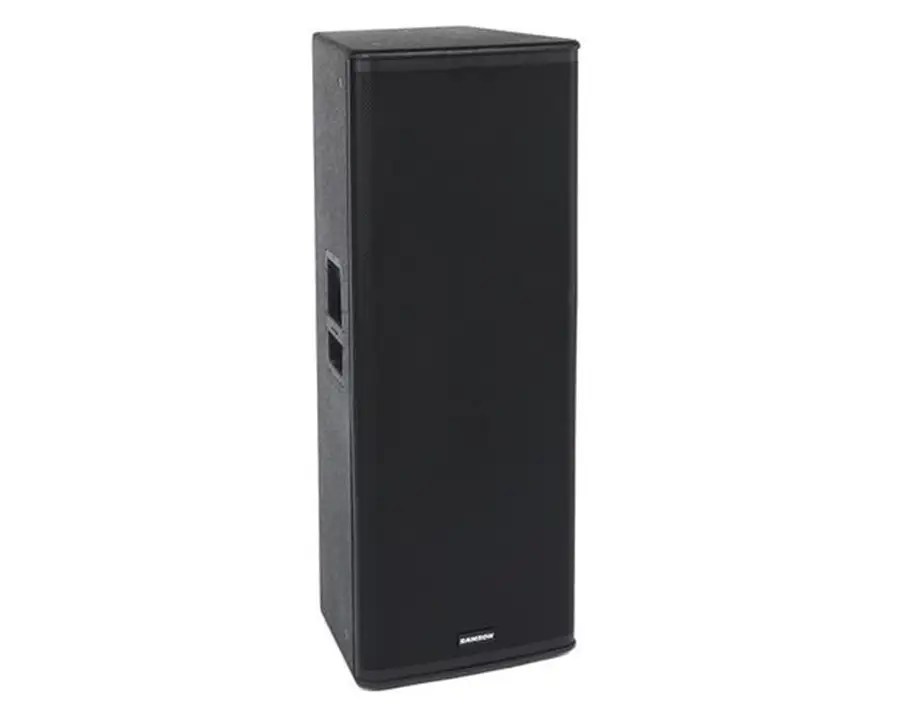

Samsons RSX215 is a high performance, 2-way passive loudspeaker ideal for sound professionals and performers looking for serious output and precision sound quality from their PA setup. Perfect for gigging musicians, houses of worship andperformance venues of varying sizes, the RSX215 offers professional sound in a versatile cabinet that is ideal for both road and installation applications.
Handling 1,200 watts AES and 4,800 watts Peak of power at 8 ohms, the RSX215 is well-suited for large PA systems. It features two heavy duty, 15" low frequency drivers with a 3" voice coils for an extended low frequency response of 40Hz–20kHz(±3dB). The speakers detailed high frequency reproduction is created by a Celestion 1.75" PETP compression driver mounted in a 60° x 90° horn with a 1" exit. It also features a custom 3-way crossover network (LF1 at 300Hz, LF2 at 2.4kHz, HF at2.4kHz). The result is brilliant, crystal-clear audio with precision control of the sound field. The RSX215 has dual Speakon® and 14" phone speaker inputs wired in parallel. This enables you to expand your PA system by directly connecting anextension speaker to the RSX215.
The RSX215s trapezoidal enclosure is constructed of solid 9-layer plywood and finished with a durable black, textured paint. Its black powder-coated, perforated steel grill ensures maximum protection against wear and tear. The speakers rugged,roadworthy design also features two integrated carry handles, making transportation of the cabinet a breeze. And for situations that require permanent speaker installation, the RSX215 is furnished with 12 M10 (10mm) fly points.
- 2-way passive loudspeaker
- Dual 15" low frequency drivers with 3" voice coils
- Celestion 1.75" PETP compression driver
- 60° x 90° horn with 1" exit
- 1,200 watts AES, 4,800 watts Peak power handling at 8 ohms
- 40Hz–20kHz (±3dB) frequency response
- Custom 3-way crossover network (LF1 at 300Hz, LF2 at 2.4kHz, HF at 2.4kHz)
- Dual Speakon® and 14" phone parallel speaker inputs
- Twelve M10 (10mm) fly points
- Integrated carry handles
- Trapezoidal, 9-layer plywood cabinet construction
- Durable black, textured paint finish
- EAN: 0809164015383
- UPC: 809164015383
